| Brand Name : | cis co |
| Model Number : | C9300L 24P 4X E |
| Certification : | CE |
| Payment Terms : | T/T |
| Delivery Time : | 1-3 working day |
| Price : | $1800/piece |
| Attribute | Description |
|---|---|

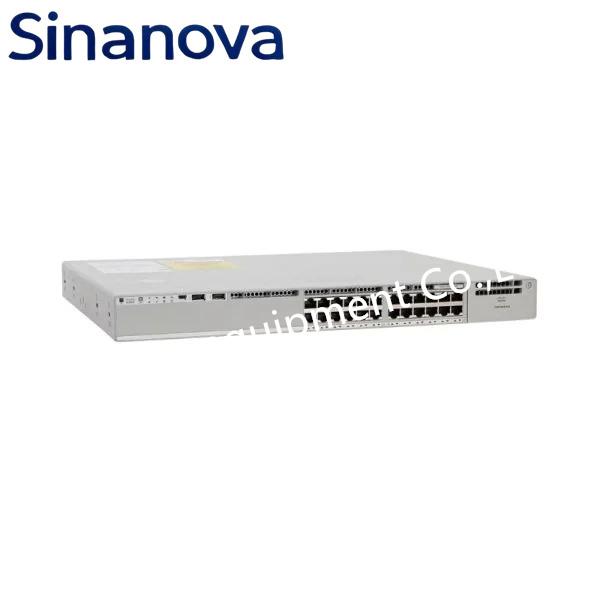

| Product Name | Cisco Catalyst C9300L-24P-4X-E |
| Series | Cisco Catalyst 9300L Series |
| Port Configuration | 24 x 10/100/1000 PoE+ ports |
| Uplink Ports | 4 x 10G SFP+ |
| PoE Support | PoE+ (IEEE 802.3at), 30W per port |
| Total PoE Budget | Up to 445W (depending on power supply) |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95 Mpps |
| Stacking | StackWise-320, up to 8 units |
| StackPower | Yes (power stacking) |
| Software License | Network Essentials (E) |
| Layer Support | Layer 2 and Layer 3 routing |
| Power Supply | Modular, default PWR-C1-715WAC |
| Fan | Redundant, field-replaceable |
| Ideal For | Enterprise access, PoE devices, high-speed uplinks |
24 x Gigabit Ethernet PoE+ ports with up to 30W per port, ideal for IP phones, cameras, APs
4 x 10G SFP+ uplinks for high-speed access-to-distribution layer connections
StackWise-320 for up to 8-member stacking and unified management
Modular power supply and StackPower for redundant, shared power systems
Full Layer 3 support including OSPF, EIGRP, RIP, static routing, PIM
Network Essentials license with basic Layer 3 routing and security features
MACsec, TrustSec, and 802.1X for secure access
Compatible with Cisco DNA Center, SD-Access, and automation frameworks
| Specification | Value |
|---|---|
| Ports | 24 x 1G PoE+ RJ-45 |
| Uplinks | 4 x 10G SFP+ |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95 Mpps |
| PoE Budget | 445W (with default PSU) |
| Stack Bandwidth | 320 Gbps (StackWise-320) |
| Power Supply | Modular (PWR-C1-715WAC default) |
| Fan | Field-replaceable, redundant |
| Dimensions (HxWxD) | 1.73 x 17.5 x 13.8 in (44 x 445 x 350 mm) |
| Weight | Approx. 5.6 kg |
| Software | Network Essentials |
| Operating Temperature | 0°C to 45°C |
| Model | Ports | Uplinks | PoE Support | License Type | Stacking | Use Case |
|---|---|---|---|---|---|---|
| C9300L-24P-4X-E | 24 x 1G PoE+ | 4 x 10G SFP+ | Yes | Network Essentials | StackWise-320 | PoE+ access switch, 10G uplinks |
| C9300L-24T-4X-E | 24 x 1G | 4 x 10G SFP+ | No | Network Essentials | StackWise-320 | Non-PoE enterprise edge |
| C9300L-24P-4G-E | 24 x 1G PoE+ | 4 x 1G SFP | Yes | Network Essentials | StackWise-320 | Lower uplink requirements |
| C9300-24P-E | 24 x 1G PoE+ | Modular | Yes | Network Essentials | StackWise-480 | Flexible uplink module options |
Sinanova specializes in supplying ICT networking equipment from leading brands such as Cisco, Huawei, and Juniper. Our product range includes switches, routers, firewalls, wireless access points and controllers, IP phones, video conferencing solutions, and more. We are committed to delivering original and reliable hardware along with professional ICT solutions—all at competitive prices. Our high-quality service ensures a smooth and hassle-free purchasing experience for our clients.
|
|
