| Brand Name : | Hua wei |
| Model Number : | XFP SX MM850 |
| Certification : | CE |
| Payment Terms : | T/T |
| Delivery Time : | 1-3 working day |
| Price : | $35/piece |

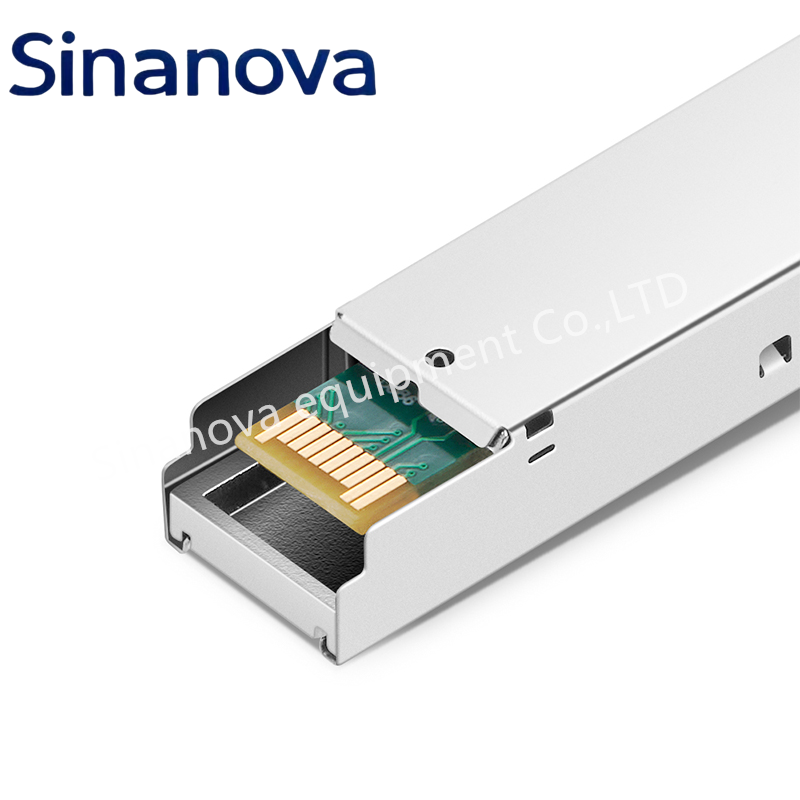

The XFP SX MM850 is a 10 Gigabit Ethernet XFP optical transceiver designed for short reach data transmission over multimode fiber. Operating at an 850 nm wavelength, it supports a 10 Gbps data rate and provides a maximum transmission distance of up to 300 meters on OM3 fiber. This hot pluggable XFP module is ideal for high speed intra-rack and inter-rack connections in data centers and enterprise networks.
| Attribute | Description |
|---|---|
| Product Name | XFP SX MM850 |
| Form Factor | XFP |
| Data Rate | 10 Gbps |
| Wavelength | 850 nm |
| Interface Type | LC duplex connector |
| Fiber Type | Multimode Fiber MMF |
| Max Distance | Up to 300 meters (OM3) |
| Operating Temperature | 0C to 70C |
| Digital Diagnostics | Yes |
| Compatibility | IEEE 8023ae 10GBASE SR compliant |
| Application | Short reach 10G Ethernet, data center networks |
Supports 10 Gbps over multimode fiber
Operates at 850 nm wavelength
Transmission distance up to 300 meters on OM3 fiber
Standard LC duplex optical interface
Hot pluggable XFP form factor
Ideal for short range data center links
Low power consumption and high reliability
| Specification | Value |
|---|---|
| Form Factor | XFP |
| Data Rate | 10 Gbps |
| Transmission Distance | 300 m (OM3) |
| Wavelength | 850 nm |
| Connector Type | LC duplex |
| Fiber Type | Multimode MMF |
| Transmit Power Range | minus 7 dBm to minus 1 dBm |
| Receive Sensitivity | minus 11 dBm |
| Operating Temperature | 0C to 70C |
| Voltage Supply | 33V |
| Model Name | Data Rate | Wavelength | Fiber Type | Max Distance | Interface |
|---|---|---|---|---|---|
| XFP SX MM850 | 10 Gbps | 850 nm | MMF | 300 m | LC |
| XFP LR SM1310 | 10 Gbps | 1310 nm | SMF | 10 km | LC |
| XFP ER SM1550 | 10 Gbps | 1550 nm | SMF | 40 km | LC |
| SFP 10G SR | 10 Gbps | 850 nm | MMF | 300 m | LC |
| SFP 10G USR | 10 Gbps | 850 nm | MMF | 100 m | LC |
